HydroClaw罐体清洗喷嘴

图文详情

HydroClaw clog-resistant stationary spray nozzle for quick,efficient tank cleaning
The unique,patent-pending,clog-resistant design quickly cleans tanks and eliminates maintenance downtime associated with clogged spray balls.
Who needs the HydroClaw?
Ideal for tanks up to 10 ft.(3 m)in diameter often found in the food,beverage,chemical,and personal care industries where superior cleaning with reduced cycle times and low water,energy,and chemical consumption are important considerations.Do you have issues with your spray balls clogging?We have the solution.
是什么导致了喷雾球体的阻塞？
Wineries:stems,skins,and seeds酒水：
Breweries:grains,obstinate hops,and fruits
Food and beverage producers:skins,fruit pulp,and residue build-up
Juice Processing Plants:fruit seeds and pulp
Sugar Processing Plants:sticky sugar residue
Tomato Processing Plants:seeds and skins
HydroClaw罐体清洁喷嘴的设计特征
Unique,patent-pending,clog-resistant design with no moving parts
HC-42 allows passage of particles 1/4”(6.4 mm)in diameter,HC-100 allows passage of particles over 1/4”(7.6 mm)in diameter–three times the free passage of a comparable spray ball

Made from FDA compliant 316L stainless steel for use in food-grade and sanitary Clean-In-Place(CIP)applications

Low pressure/high flow operation quickly cleans tank walls to reduce overall water consumption compared to a static spray ball低压力/高流量操作快速清洗罐体，
自动排水和冲洗
激光焊接，牢固耐用
Available in a variety of connection sizes and types,including threaded,clip-on and welded
Clip-on nozzles include low-profile retaining pin for secure connection夹持
Fits through compact openings:either 2-1/2"(63.5 mm)or 3"(76 mm)diameter
Optimal cleaning performance achieved at 30 psi(2 bar)
HydroClaw箱体清洁喷嘴的喷雾性能
Vigorous rinsing action quickly flushes solids and contamination from vessels
Complete 360°omnidirectional coverage完整360°全向喷雾

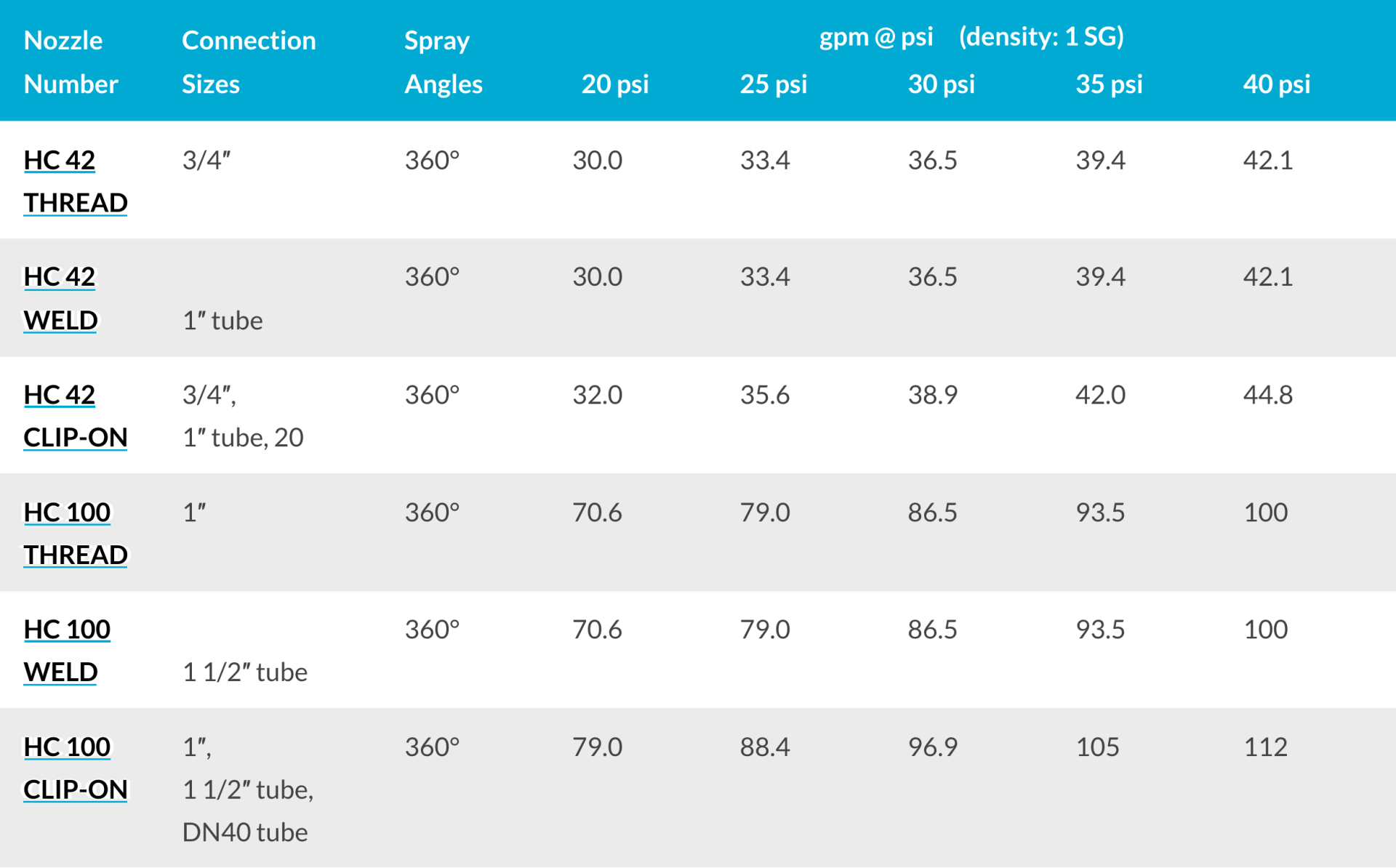

For HydroClaw washing diameters please refer to the PDFs on the right.

案例研究：解决种子和果皮的阻塞问题
常用材料：316L
